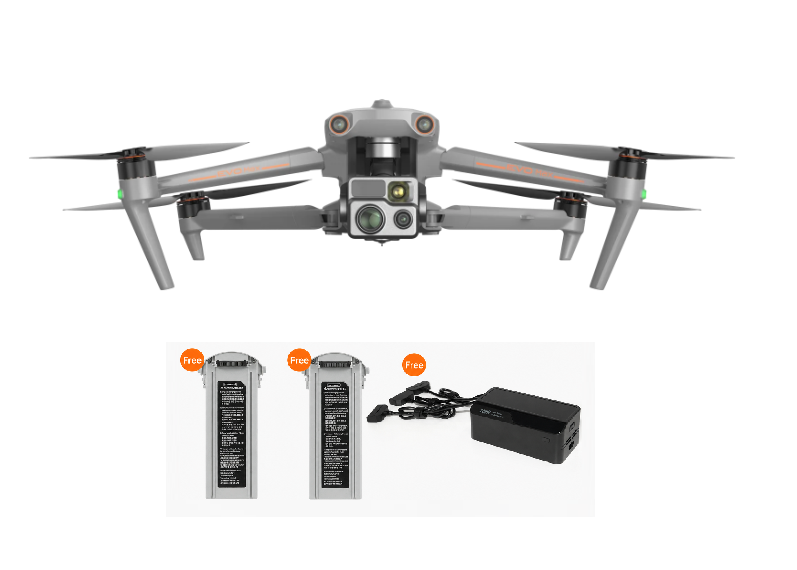

Name: EVO Max 4T-XE
Brand: Autel Robotics
SKU: 102003216
Price: 8999.0 USD
Availability: InStock

EVO Max 4T-XE

$8,999.00 USD

EVO Max 4T-XE

$8,999.00 USD

Integrated Wide, Zoom, and Thermal cameras with a Laser Rangefinder sensor
Autel SkyLink 3.0 | 12.4 miles Transmission Range
720° Obstacle Avoidance
A-Mesh 1.0 | Mesh Networking Technology
3D Map Planning | Multiple Mission Types | Data Security
Navigation in GPS Denied Environments
42 mins Max Flight Time
IP43 ingress protection, and -3° F～122° F temperature operation range

Learn More

Fast delivery available on checkout page

Pay with Ease & secured method

Hassle-Free Warranty & Care Plans

Lifetime Customer Support

Have questions about buying this product? Contact us

Add a Autel Robotics Care - EVO Max 4T XE

Autel Robotics Care - 1 Year

for $809.00 USD

Features

Specifications

Weight	1635g (ABX40 Smart battery, Fusion 4N Gimbal, and propellers included)
Max. Takeoff Weight	4.41 lbs (1999 g)
Dimensions	562649150 mm (unfolded, incl. 1136 propellers) 563650150 mm (unfolded, incl. 1158 propellers)
Diagonal Wheelbase	465mm (1.53 ft)
Max Ascent Speed	Slow: 2.5m/s Smooth: 3m/s Standard: 6m/s Ludicrous: 8m/s
Max Descent Speed	Slow: 2.5m/s Smooth: 3m/s Standard: 6m/s Ludicrous: 6m/s
Max Horizontal Speed (windless near sea level)	Slow: 3m/s Smooth: 10m/s Standard: 15m/s (forward & backward), 10m/s (sidewards) Ludicrous: 23m/s(forward), 18m/s(backward), 20m/s(sidewards)
Maximum Takeoff Altitude	4000 meters (13,123ft, use ABX40 smart battery) 3000 meters (9,843ft, use ABX41 smart battery)
Max Flight Time (windless)	42 min (Test data from lab with windless environment in the speed of 8 m/s during horizonal flight and only for reference)
Max Hover Time (windless)	38 min (Test data from lab with windless environment during hovering and only for reference)
Max Wind Resistance	Takeoff and Landing Phase: 10.7 m/s Cruise Phase: 12 m/s
IP Rating	IP43
Max Tilt Angle	Slow: 10° Smooth: 30° Standard: 30° Ludicrous: 36°
Max Angular Velocity	Pitch axis: 300°/s Heading axis: 120°/s
Operating Temperature	-20°C to 50°C (without load), -20°C to 40°C (full load)
Operating Frequency	2.4G：2.400–2.476GHz，2.400–2.4835GHz 5.2G：5.15-5.25GHz，5.17-5.25GHz** 5.8G：5.725-5.829GHz，5.725-5.850GHz Only applies to SRRC regions Only applies to FCC, CE (Germany excluded) and UKCA regions * Only applies to Germany Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
GNSS	GPS+Galileo+BeiDou+GLONASS
Transmitter Power (EIRP)	2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC); ≤23dBm (CE/UKCA) 5.8G: ≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA)
Hovering Accuracy	Vertically: ±0.1 m (when vision systems working normally) ±0.5 m (when GNSS working normally) Horizontally: ±0.3 m (when vision systems working normally) ±0.5 m (when GNSS working normally)

Mechanical Range	Pitch: -135° to 45° Roll: -45° to 45° Yaw: -45° to 45°
Controllable Range	-90° to 30°
Stable system	3-axis mechanical gimbal (pitch, roll, pan)
Max. Control Speed (pitch)	100º/s
Angular Vibration Range	<0.005°

Sensor	1/2" CMOS, Effective pixels: 48M
Lens	Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm) Aperture: f/2.8-f/4.8
Exposure Compensation	±3EV 0.3EV/step
ISO Range	Auto: ISO100 – ISO6400 Manual: ISO100 - ISO6400
Electronic Shutter Speed	Photo: 8s ~ 1/8000 Video: 1s ~ 1/8000
Max Photo Size	8000×6000
Max. Video Resolution	4000×3000 P30

Sensor	1/2" CMOS. Effective pixels: 48M
Lens	DFOV: 83.4° Focal Length: 4.49 mm Equivalent Focal Length: 24 mm Aperture: F2.8 AF Motor: FF Focus: 1.5 m ~ ∞
Video Encoding	H.264/H.265
ISO Range	Auto/Manual: ISO100 - ISO6400 Night Mode: ISO100 – ISO32000 (auto)
Electronic Shutter Speed	Shooting: 8s ~ 1/10000s Recording: 1/30s ~ 1/10000s
Max. Video Resolution	4000×3000 P30 Nighttime: 2400×1800 P30
Photo Size	JPG: 4000×3000, 8192×6144 DNG: 4096×3072

Thermal Imager	Uncooled VOx Microbolometer
Lens	FOV：61° Focal length：9.1mm Aperture: f/1.0 Focusing Distance:2.2m~∞
Radiometric Measurement Accuracy	±2℃ or reading ±2% (using the larger value) @ambient temperature range from -4℉ to 140℉ (-20℃~60℃)
Video Resolution	640×512@30fps / 640×512@25fps * Due to differences in thermal imaging sensor suppliers, the two specifications are shipped in mixed batches. The exact specification is subject to the actual product purchased.
Photo Size	640*512
Accurate Temperature Measurement Distance	5 m
Temperature Measurement Method	Center temperature measurement/Pot temperature measurement/Area temperature measurement
Temperature Measurement Range	-20°C to 150°C (high gain mode) 0 to 550°C (low gain mode)
Temperature Alert	High and low temperature alarm thresholds, reporting coordinates and temperature values
Palette	White Hot/Black Hot/Ironbow/Rainbow 1/Rainbow 2/Lava/Arctic/Ironbow/Medical/Tint

Wavelength	905 nm
Measurement Accuracy	± (1 m + D×0.15%) where D is the distance to a vertical reflecting plane
Measuring Range	5 - 1200 m

Operating Frequency	900M: 902-928MHz* 2.4G: 2.400–2.476GHz, 2.400–2.4835GHz 5.2G: 5.15-5.25GHz, 5.17-5.25GHz* 5.8G: 5.725-5.829GHz, 5.725-5.850GHz * Only applicable to FCC and ISED regions. Only applicable to SRRC regions. * Only applicable to FCC, CE (Germany excluded) and UKCA regions **** Only applies to Germany Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
Max Transmission Distance (unobstructed, free of interference)	FCC: 15km CE: 8km
Transmitter Power (EIRP)	2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC); ≤23dBm (CE/UKCA) 5.8G: ≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA)

Frequency	60G: 60 - 64 GHz 24G: 24.0 - 24.25 GHz
Operating Environment	60 GHz millimeter-wave radar sensing system: Supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees in 4 directions. Its obstacle avoidance distance varies with the obstacle's ability to reflect electromagnetic waves and its surface size. 24 GHz millimeter-wave radar sensing system: Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 12 meters, and the sensing range of grass with a thickness of more than 3 cm is less than 6 meters.
Effective Isotropic Radiated Power (EIRP)	60G: ≤20dBm (CE/UKCA/FCC) 24G: ≤20mW (SRRC)
Sensing Range	60G millimeter-wave radar: Upward: 0.3 - 20 m Downward: 0.15 - 80 m Forward & Backward: 0.3 - 50 m 24G millimeter-wave radar: Downward: 0.8 - 12 m
FOV	Horizontal (6dB): ±60°/±22° (60 GHz/24 GHz) Vertical (6dB): ±30°/±20° (60 GHz/24 GHz)
Aircraft Version Limitations*	To comply with (national) regional regulations, certain aircraft versions use a 24 GHz millimeter-wave radar in the downward direction and use 60 GHz radars in the forward, backward, and upward directions. In the 24 GHz aircraft version, the 60GHz radars in the forward, backward, and upward directions are disabled in the flight software at the factory, and only the 24GHz radar in the downward direction is enabled to assist in landing. The 24 GHz aircraft version only supports visual obstacle avoidance under good lighting conditions and does not support millimeter-wave radar obstacle avoidance at night.

Sensing Range	Forward: 19.7-1220.5in (0.5-31m) Backward: 19.7-984.3in (0.5-25m) Sideward: 19.7-1023.6in (0.5-26m) Upward: 0.66-85.3ft (0.2-26m) Downward: 0.98-75.5ft (0.3-23m)
FOV	Forward/Backward Sensor: 60°(H), 80°(V) Upward/Downward Sensor: 180°(sideward), 120°(forward & backward)
Operating Environment	Forward, backward, sideward, and upward: The surface has rich texture, under a sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment) Downward: The surface is a diffuse material with a reflectivity >20% (walls, trees, humans, etc.), under sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment)

Dimensions	269×189×87 mm (antennas folded, sticks and bracket included) 269×189×173 mm (antennas vertical to screen, sticks and bracket included) 269×302×87 mm (antennas unfolded, sticks and bracket included)
Weight	1194 g (protective case excluded) 1365 g (protective case included)
Screen	Dimensions: 7.9 inches Maximum Brightness: 2000 nits Resolution: 2048×1536 Refresh Rate: 60Hz Touch Control: Supports 10-point touch
Battery	Battery Type: Li-Po 3S Rated Capacity: 5800mAh Voltage: 11.55V Battery Energy: 67Wh Charing time: 120 min Battery Endurance: 2.5 hours (Max brightness), 4.0 hours (50% brightness)
Operating Time	3 hours (Max. brightness) 4.5 hours (50% brightness)
Max Transmission Distance (with interference)	FCC: 15km (9.3 miles) CE / SRRC: 8km (4.9 miles)
IP Rating	IP43
Storage	128G
GNSS	GPS+GLONASS+Galileo+Beidou
Operating Temperature	-4°F to 104°F (-20℃ to 40℃)
Wi-Fi Protocol	802.11a/b/g/n/ac Support 2 x 2 MIMO Wi-Fi
Wi-Fi Operating Frequency	2.4G: 2.400–2.476GHz, 2.400–2.4835GHz 5.8G: 5.725-5.829GHz, 5.725-5.850GHz *Only applies to SRRC region Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
Wi-Fi Effective Isotropic Radiated Power (EIRP)	2.4G: ≤30dBm（FCC/ISED）; ≤20dBm（CE/SRRC/UKCA） 5.8G: ≤30dBm（FCC/ISED/SRRC）; ≤14dBm（CE/UKCA）

Battery Dimension	158.4×74.3×50.7 mm
Operating Temperature	-4° F to 113° F (-20°C to 50°C)
Rated Capacity	ABX40: 8070mAh ABX41: 9248mAh
Voltage	ABX40: 14.88V ABX41: 14.76V
Battery Type	LiPo 4S
Battery Energy	ABX40: 120Wh ABX41: 136.5Wh
Weight	ABX40: 1.15 lbs (520g) ABX41: 1.17 lbs (533g)
Battery Charge Temperature	41° F to 113° F (5ºC to 45ºC) (When the battery temperature is below +5°C, the battery stops charging and activates self-heating. When the battery temperature is above +45°C, the battery stops charging.)
Hot Swappable	Support
