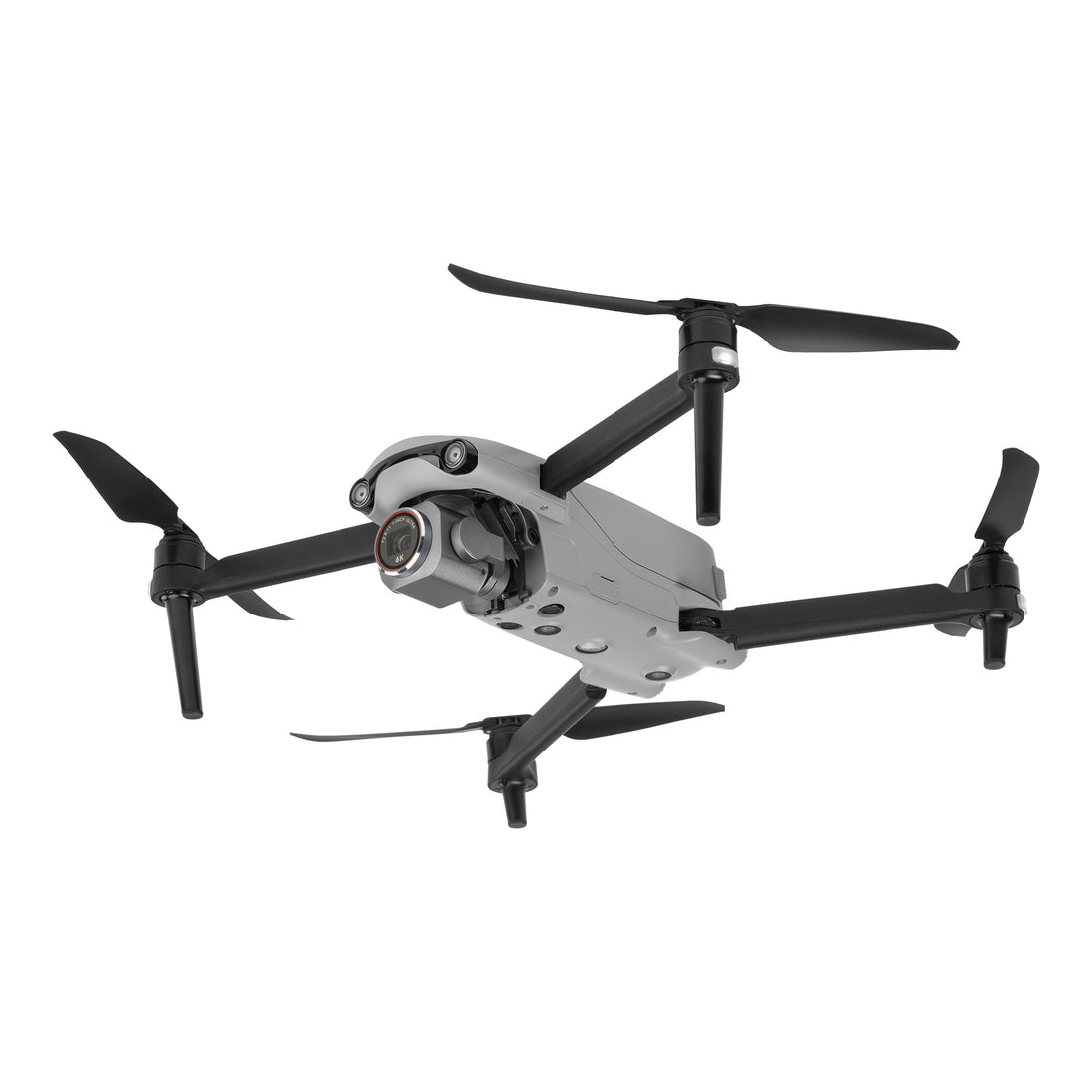

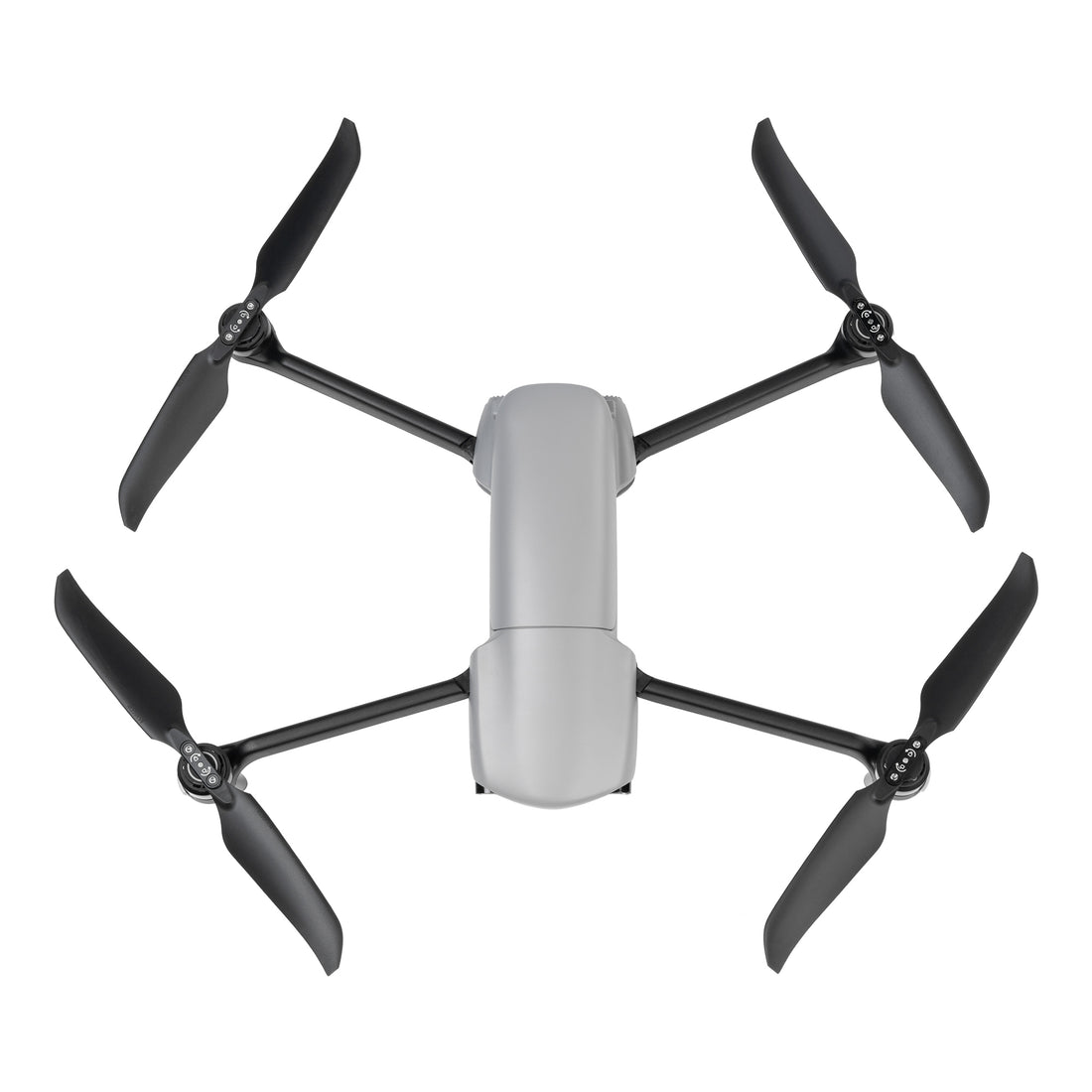

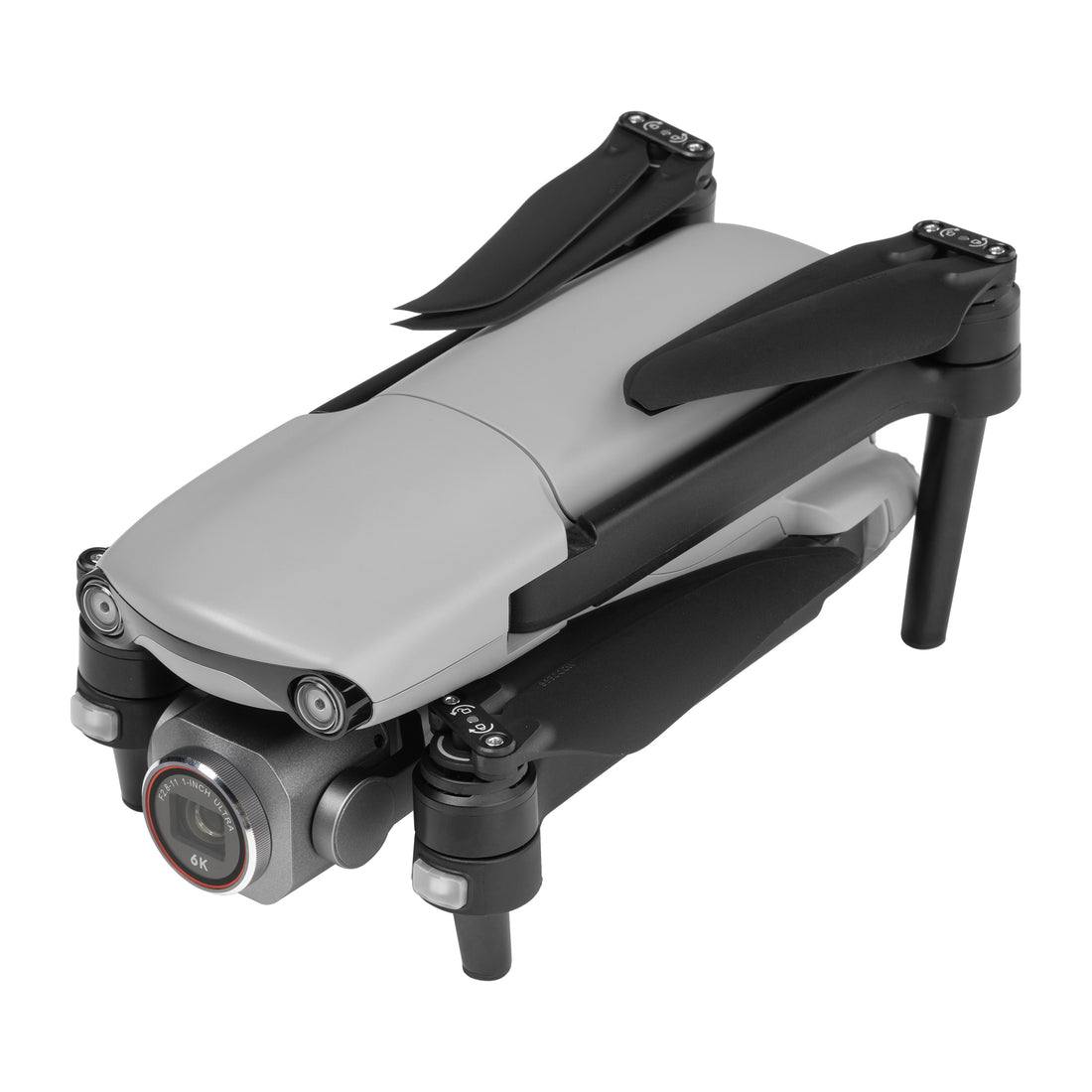

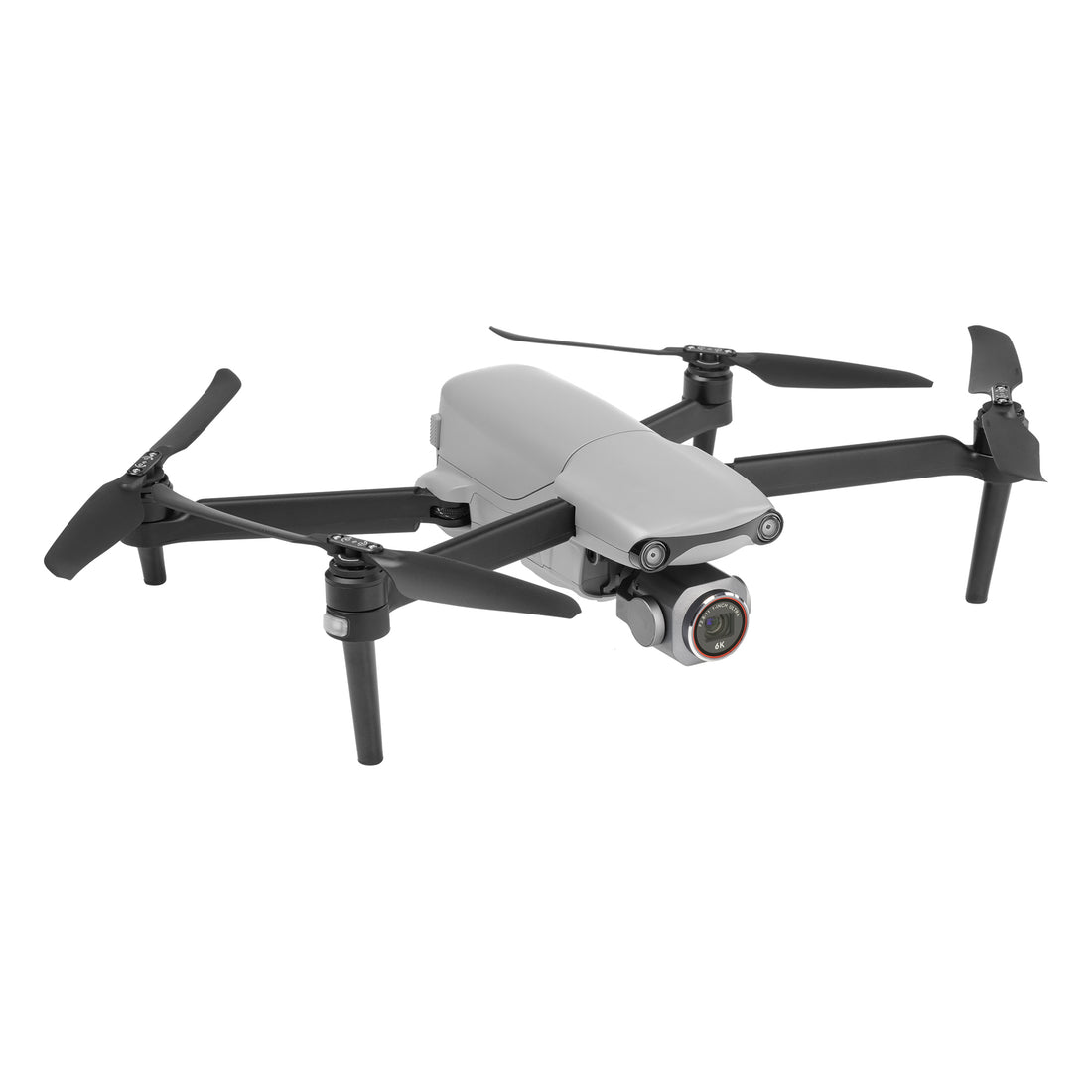

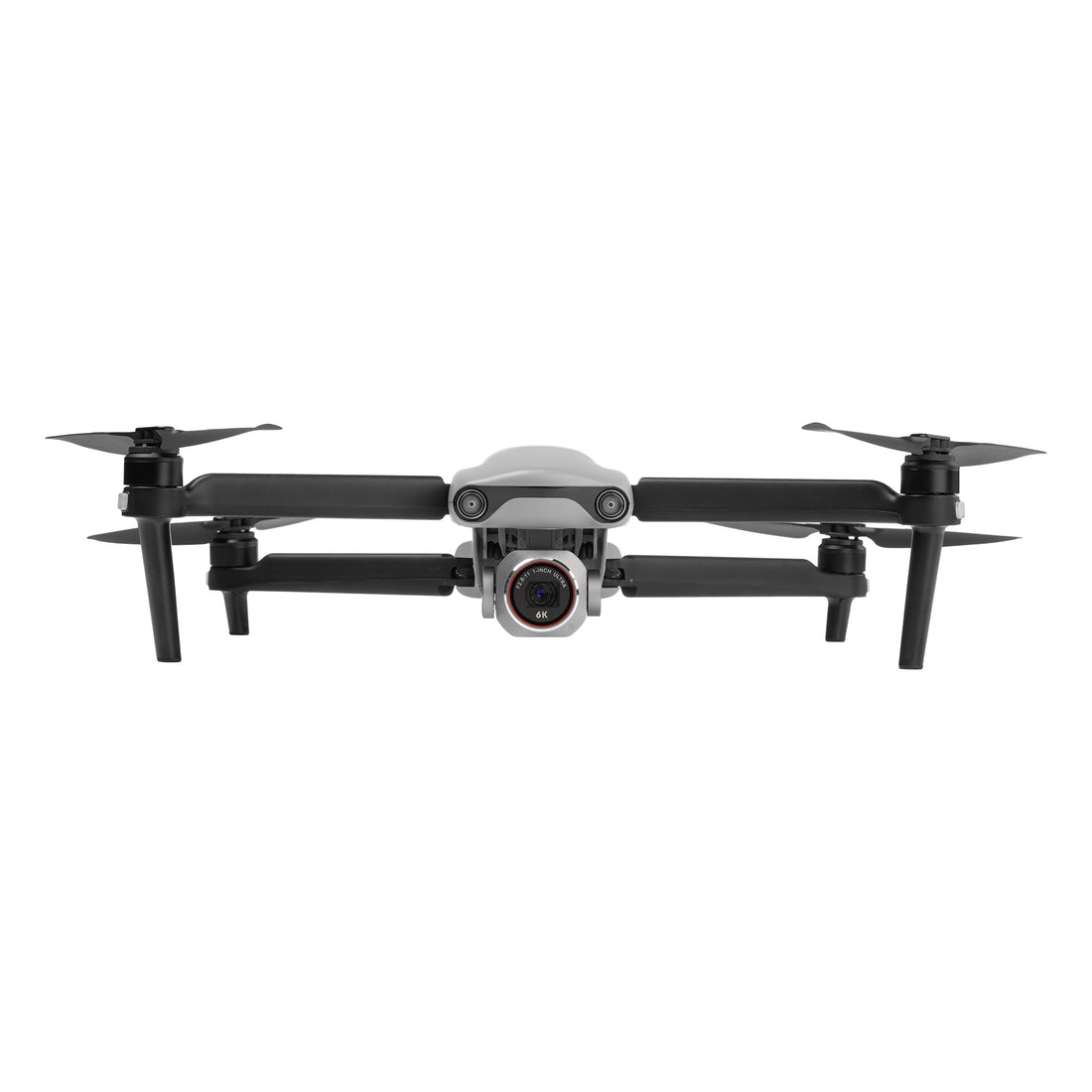

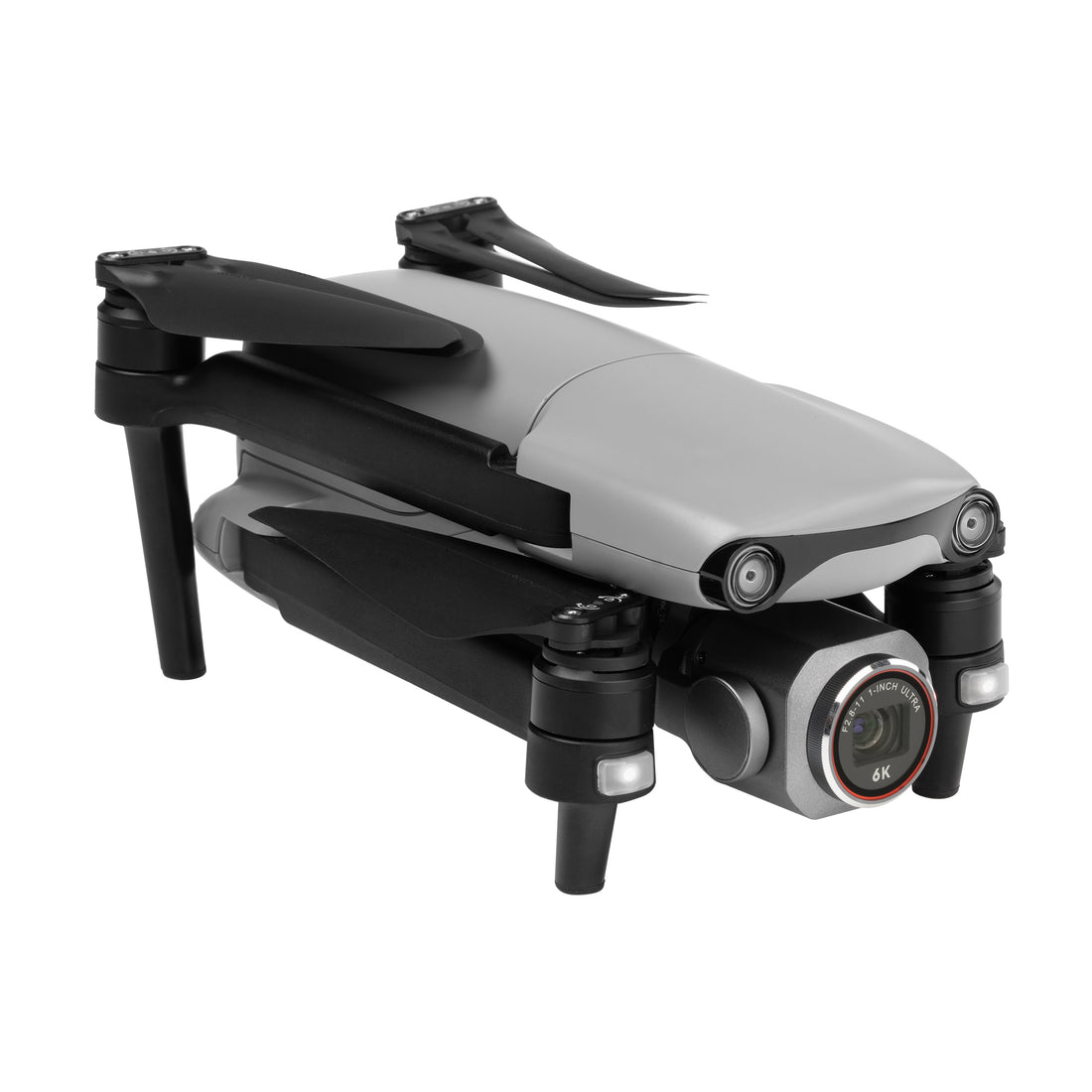

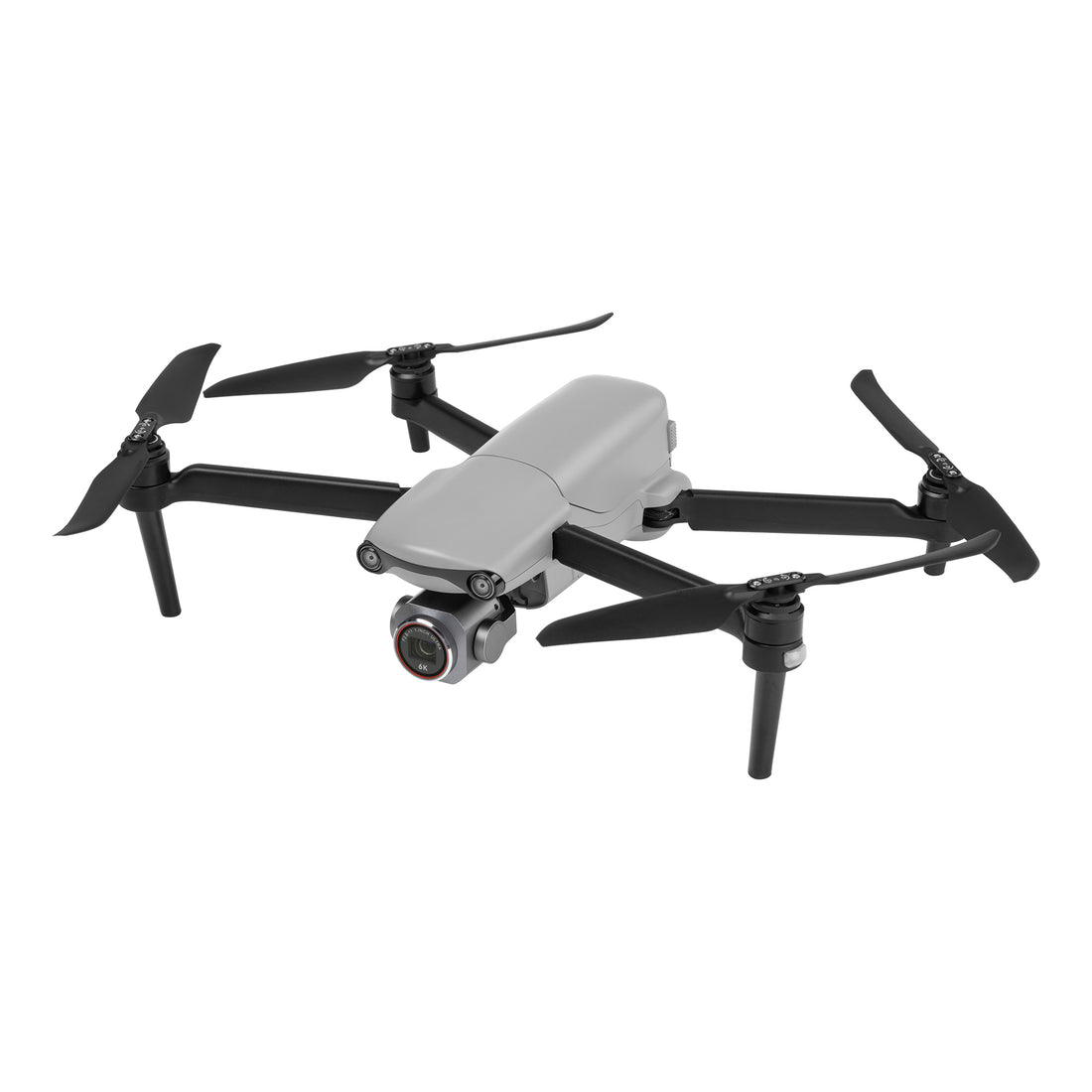

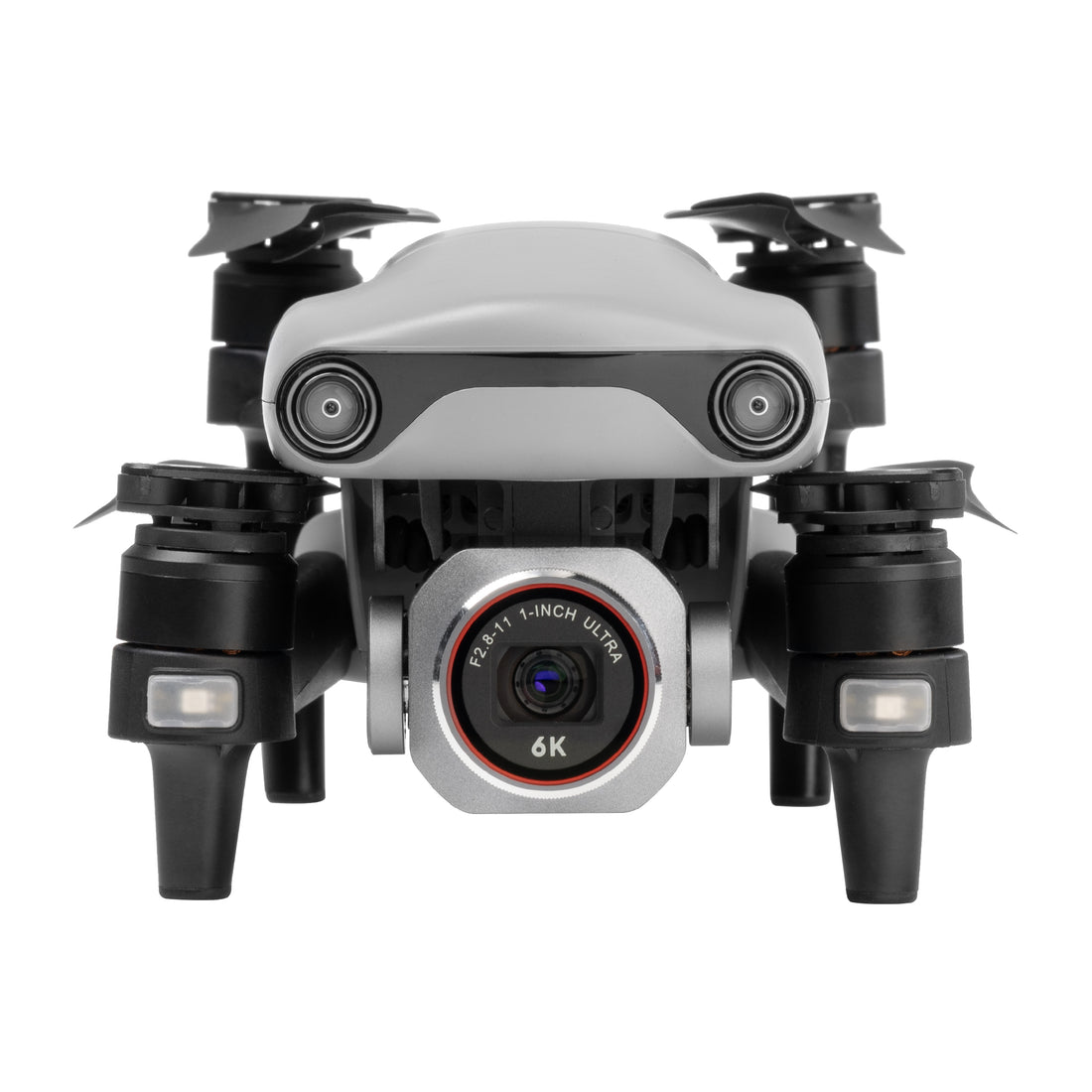

EVO Lite 6K Enterprise
$2,299.00 USD
EVO Lite 6K Enterprise
$2,299.00 USD
- Easy to carry and deploy, suitable for industrial applications
- AI target recognition automates identification and mapping of various objects
- Three-way binocular vision ensures safe flight operations
-
1“ CMOS 20MP RGGB camera able to record in 4K/30FPS Video
- Industry-leading 40 minutes flight time
- Transmission range of 7.4 miles
- Simplifies operation, enabling efficient, single-person deployment for scenarios like public safety and emergency rescue
Features
Specifications
| Weight | 1.91 lbs (866 g) |
| Max. Takeoff Weight | 1.91 lbs (866 g) |

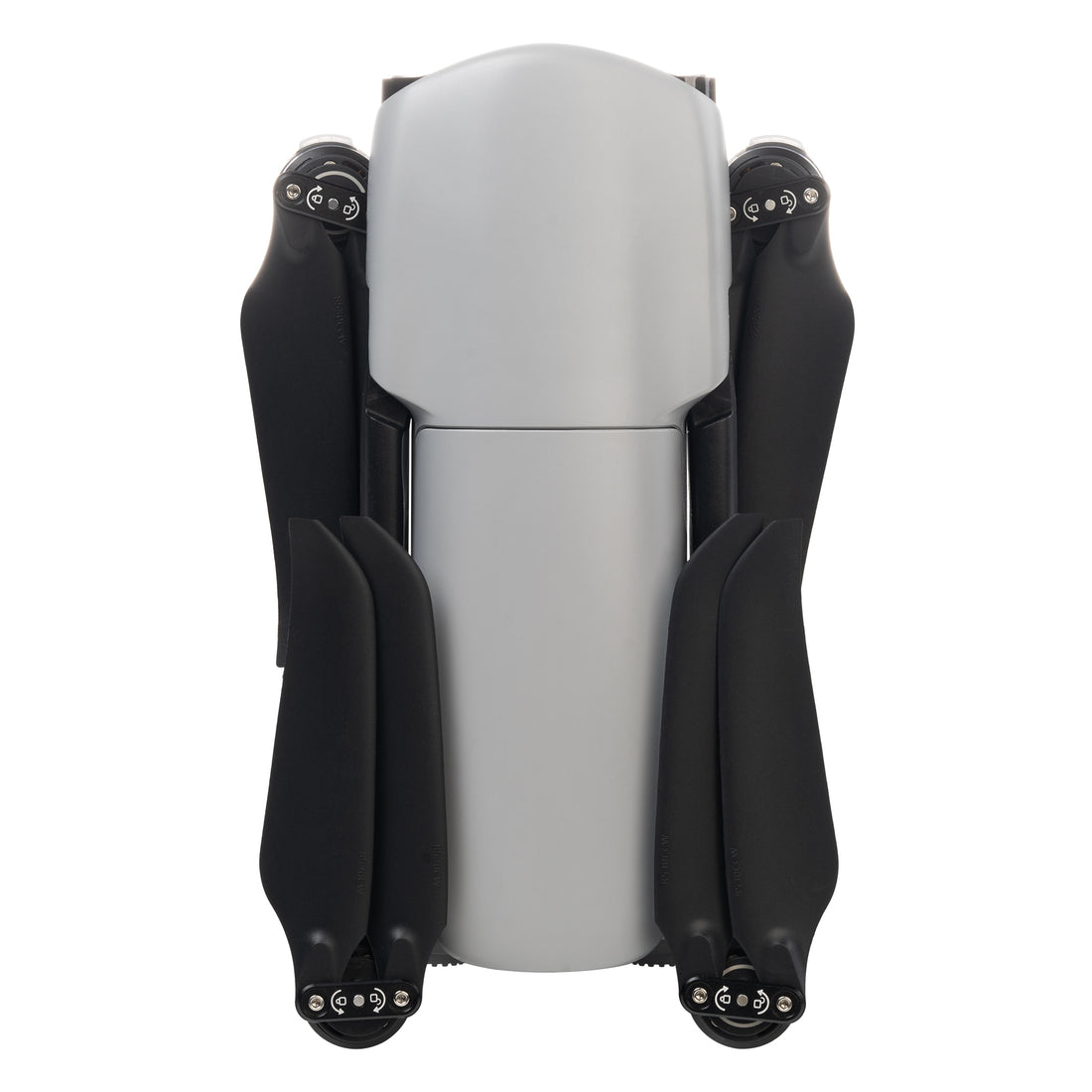

| Dimensions | 210*123*95 mm(fold, incl. propellers)Â 433*516*95 mm (unfold, excl. propellers) |
| Diagonal Wheelbase | 368mm |
| Max Ascent Speed | 6m/s |
| Max Descent Speed | 4m/s |
| Max Horizontal Speed (windless near sea level) | 18m/s |
| Maximum Takeoff Altitude | 9,842 ft (3000m) |
| Max Flight Time (windless) | 40 mins |
| Max Hover Time (windless) | 37 mins |
| Max Wind Resistance | 10.7m/s |
| IP Rating | IP43 |
| Max Tilt Angle | 33° |
| Max rotation angular speed | 200°/s |
| Operating Temperature | -10℃～+40℃ |
| Operating Frequency | 2.4G: 2.400 – 2.476 GHz*; 2.400 – 2.4835 GHz 5.2G: 5.15 - 5.25 GHz** 5.8G: 5.725 - 5.829 GHz*, 5.725 - 5.850GHz *Only applicable to SRRC regions **Only applicable to FCC regions Note: Some frequencies are only available in some regions and some frequencies are only allowed for indoor use. Check local laws and regulations for details |
| GNSS | GPS+Galileo+BDS+GLONASS |
| Transmitter Power (EIRP) |
2.4G: ≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC) 5.8G: ≤30dBm(FCC/SRRC/ISED/RCM); ≤14dBm(CE/UKCA) |
| Hovering Accuracy |
Vertically: ±0.1 meters (when visual positioning is working normally) ±0.3 meters (when GNSS is working normally) Horizontally: ±0.15 meters (when visual positioning is working normally) ±0.3 meters (when GNSS is working normally) |
| Gimbal | 3-axis stabilization |
| Mechanical range |
Pitch: -135°~45° Roll: -45°~45° Yaw: -90°~90° |
| Controllable rotation range | Pitch: -90°~30° |
| Max control speed (Tilt) | 100°/s |
| Angular Vibration Range | ±0.003° |
| Sensing range |
Forward: 0.2~23 meters Effective obstacle avoidance speed: ＜10m/s Backward: 0.2~30 meters Effective obstacle avoidance speed: ＜10m/s Downward: 0.2~20 meters |
| Forward | 75° horizontally, 87° vertically |
| Backward | 35° horizontally, 45° vertically |
| Downward | 99° horizontally, 83° vertically |
| Effective use of the environment |
Front, rear: The surface has rich texture and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment) Below: The ground is richly textured and the lighting conditions are sufficient (>15 lux, normal indoor fluorescent lighting environment) The surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.) |
| Sensor | 1 inch CMOS; 20M pixels |
| Lens | DFOV: 82° 35 mm format equivalent focal length: 29 mm Aperture: f/2.8 - f/11 Focus range: 0.5 m to infinity |
| ISO range | Auto/Manual: ISO100 ~ ISO6400 |
| Shutter speed | 1/10000 ~ 1/60 seconds |
| Zoom | 1-16x |
| Photo mode | JPG |
| Maximum photo size | 5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9) |
| Image Format | JPG (default) / DNG / JPG+DNG |
| Photo mode | 5472×3076, 3840×2160 |
| Video format | MP4 / MOV (H.265/H.264) |
| Video resolution | 3840×2160 P30 |
| Supported file system | FAT32/exFAT |
| Controller Model | Autel Smart Controller SE V2 |
| Operating frequency |
900M: 902 - 928MHz* 2.4G: 2.400 – 2.476GHz**，2.400 – 2.4835GHz 5.2G: 5150-5250MHz*** 5.8G: 5.725 - 5.829GHz**，5.725 - 5.850GHz *Only applicable to FCC and ISED regions **Only applicable to SRRC regions ***Only applicable to FCC and RCM regions Note: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and regulations. |
|
Effective Isotropic Radiated Power (EIRP) |
900M：≤30dBm (FCC/ISED) 2.4G：≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC) 5.2G: ≤30dBm (FCC/RCM) 5.8G：≤30dBm (FCC/SRRC/ISED/RCM); ≤14dBm(CE) |
| Max Transmission Distance (unobstructed, free of interference) | FCC：12km CE/SRRC: 8 km |
| Display screen | 1440×720 |
| Battery | 1900 mAh |
| Operating time |
1.5 hours (Max brightness) 2.5 hours (50% brightness) |
| Charging time |
About 90 minutes (charging time is related to actual remaining power) |
| Internal Storage |
Built-in storage of 32GB Available storage: 24GB |
| Capacity | 6175 mAh |
| Voltage | 11.13 V |
| Battery type | LiPo 3S |
| Energy | 68.7 Wh |
| Weight | 309 g |
| Charging temperature range | +5-+45℃ |
| Storage temperature and humidity | - 10℃ ~ +30℃, 65 ± 20%RH |
| Recommended storage temperature | 22-28℃ |
| Max charging power | 78W |
| Charging time | 90 minutes |
| Input | 100-240 V, 50/60 Hz, 1.5A |
| Output | 12.75 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A |
| Output port | Battery charging interface/USB-A |
| Rated power | 63.75W Max |
