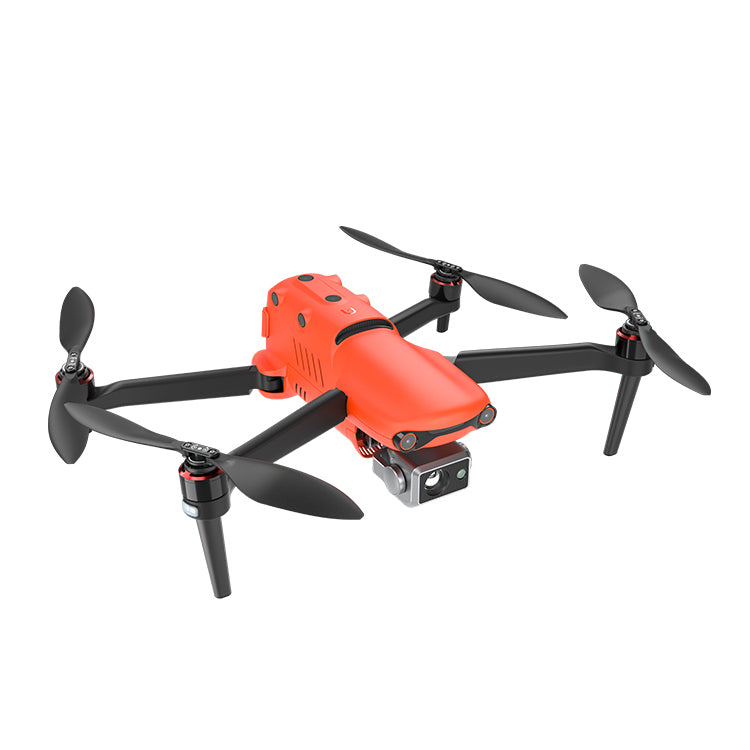

EVO II Dual 640T (V2) Rugged Bundle
EVO II Dual 640T (V2) Rugged Bundle
- Dual Camera design with a thermal imaging sensor
- Thermal imaging sensor has a resolution of up to 640x512@30 fps
- Support 10 Thermal color palettes, 30Hz refresh rate and Picture-in-Picture mode
- 13mm lens and 16x digital zoom capable of recognizing subjects at up to 100m
- Radiometric Temperature Detection
- 1/2" CMOS sensor capable of 48 MP photos and 8K Ultra HD Videos
- 360° obstacle avoidance with 19 groups of sensors
- Industry-leading 38 minutes flight time
- Transmission range of 9KM
Features

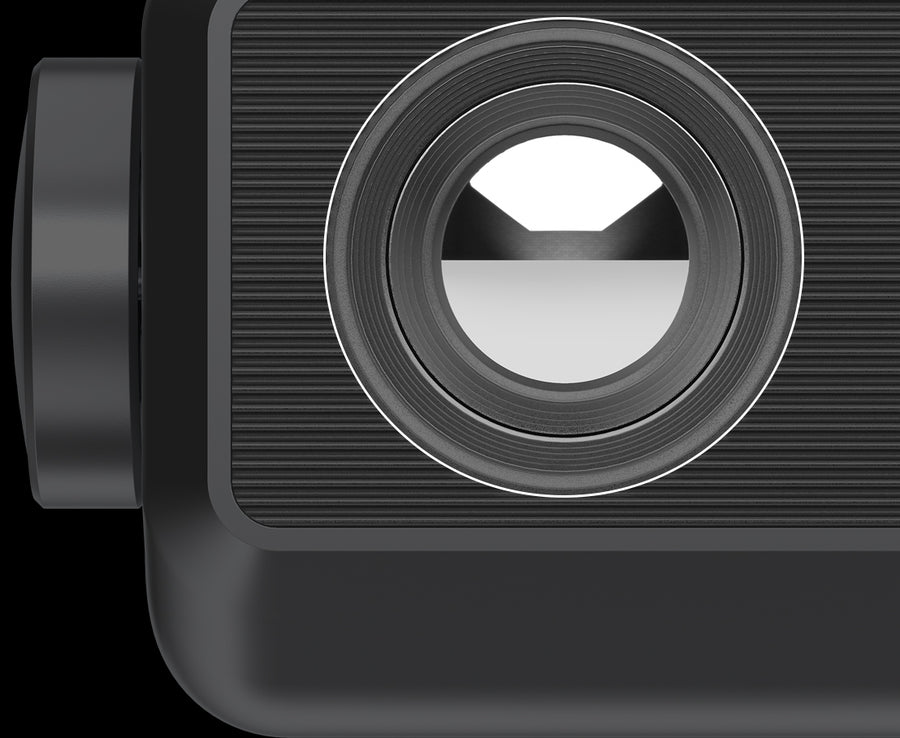

A New Generation
Of Thermal Sensor
The new generation of the
Autel Robotics thermal imaging sensor
has a resolution of up to 640x512@30 fps.
It also comes standard with a 13mm lens,
16x digital zoom, and is capable of
recognizing subjects at up to 100 m
away which provides
greater resolution than any camera in its class,
enabling pilots to see deep detail
in dark environments.
Maximum Efficiency
In All Viewing
Conditions
10 Thermal Color Palettes
640x512 Resolution
30 Hz Refresh Rate
Picture-in-Picture Mode
Capture And Preserve
Even The Smallest
Of Details

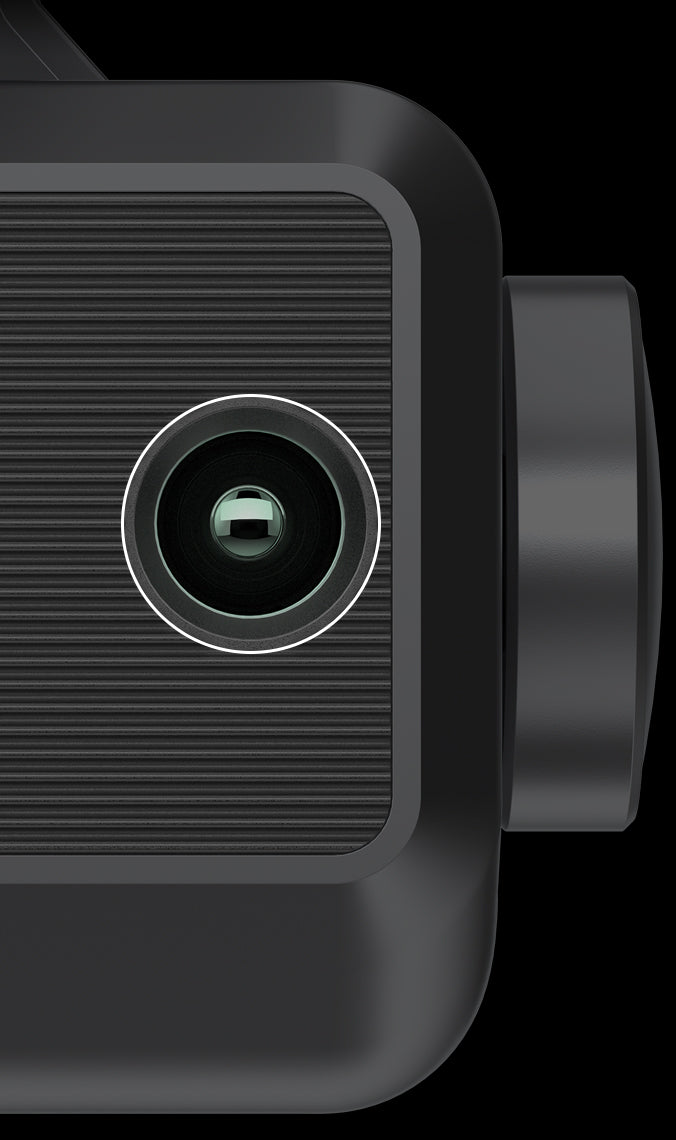

8K Video, Unmatched Clarity
48MP Camera
4x Lossless Zoom
360° Obstacle Avoidance
Equipped with 19 groups of sensors — including 12 visual sensors, the main camera, ultrasound, and dual IMUs — the EVO II Pro can easily build three-dimensional maps and plan paths through complex terrain in real time.
Dynamic Track 2.0
The EVO II Pro can model the location and speed of targets simultaneously, predict their trajectory accurately, and track them continuously while identifying up to 64 objects at the same time.
Applications for 640T Thermal drones
The EVO II Dual 640T is a highly advanced drone that can greatly assist hunters in their pursuits. With a dual 640T thermal camera and high-resolution imaging capabilities, hunters can locate and track game from the air. The drone's long flight time and stable flight performance also allow for extended monitoring and observation of wildlife. This cutting-edge technology can help hunters plan and execute successful hunting trips, increasing their chances of making a successful catch.
Specifications
| Takeoff weight | 1150 g |
| Max takeoff weight | 2000 g |
| Size(L*W*H, propeller included) | 457*558*108mm (Unfolded) 230*130*108mm (Folded) |
| Wheelbase | 397 mm |
| Maximum service ceiling altitude | 7000 m |
| Max ascent speed | 8 m/s (Ludicrous) |
| Max descent speed | 4 m/s (Ludicrous) |
| Max horizontal flight speed | 20m/s (Ludicrous) |
| Max flight distance (no wind) | 25 km |
| Max angular velocity | 120°/s |
| Max flight time (no wind) | 38 min |
| Max hovering time (no wind) | 33 min |
| Operating temperature range | -10℃ ~ 40℃ |
| Maximum resistance to wind | Level 8 |
| Operating frequency | non-Japan：2.400 GHz - 2.4835 GHz；5.725 - 5.850 GHz Japan：2.400 GHz - 2.4835 GHz；5.650 - 5.755 GHz |
| Transmission power | 2.4G FCC/ ISED：≤27dBm SRRC/CE/MIC/RCM：≤20dBm 5.8G (non-Japan) ; 5.7G (Japan) FCC/ISED/SRRC/MIC：≤27dBm CE/ RCM：≤14dBm |
| Hovering accuracy | Vertical: ±0.02 m (when the visual positioning is working normally); ±0.2 m (when GPS positioning works normally) Horizontal: ±0.02 m (when the visual positioning is working normally); ±0.5 m (when GPS positioning works normally) |
| Gimbal | Three-axis stabilization |
| Mechanical range | Tilt: -135° to +45°; Pan: -100° to +100° |
| Controllable rotation range | Tilt: -90° to +30°; Pan: -90° to +90° |
| Max control speed (Tilt) | 300°/s |
| Angular Vibration Range | ±0.005° |
| Sensing system type | Omnidirectional sensing system |
| Forward | Accurate measurement range: 0.5-20 m Detection range: 0.5-40 m Effective sensing speed: <15m/s Viewing angle: Horizontal: 60°, Vertical: 80° |
| Backward | Accurate measuring range: 0.5-16 m Detection range: 0.5-32 m Effective sensing speed: <12m/s Viewing angle: Horizontal: 60°, Vertical: 80 |
| Upward | Accurate measurement range: 0.5-12 m Detection range: 0.5-24 m Effective sensing speed: <6m/s Viewing angle: horizontal: 65°, vertical: 50° |
| Downward | Accurate measurement range: 0.5-11 m Detection range: 0.5-22 m Effective sensing speed: <6m/s Viewing angle: horizontal: 100°, vertical: 80° |
| Left and right | Accurate measurement range: 0.5-12 m Detection range: 0.5-24 m Effective sensing speed: <10m/s Viewing angle: horizontal: 65°, vertical: 50° |
| Operating Environment | Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) |
| Sensor | 1 inch CMOS; 20M effective pixels |
| Lens | FOV: 82° 35 mm format equivalent focal length: 28.6 mm Aperture: f/2.8 - f/11 Focus range: 1 m to infinity (with auto focus) |
| Zoom | 1-16x (up to 3x lossless zoom) |
| ISO range | Video: 100-6400 Photos: 100-12800 |
| Maximum photo size | 5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9) |
| Photo mode | Single shot Burst shooting: 3/5 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias Time Lapse: JPG: 2s/5s/7s/10s/20s/30s/60s DNG:5s/7s/10s/20s/30s/60s HyperLight: support (under 4K JPEG format) Long exposure:Max. 8s HDR imaging: support (under 4K JPEG format) |
| Image Format | JPG (default); DNG |
| Video format | MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
| Video resolution | 6K 5472*3076 p30/p25/p24 4K 3840*2160 p60/p50/p48/p30/p25/p24 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24 |
| Max bitrate | 120Mbps |
| Sensor | 1/2 inch CMOS; 48M effective pixels |
| Lens | FOV: 79° 35 mm format equivalent focal length: 25.6 mm Aperture: f/1.8 Focus range: 0.5 m to infinity (with auto focus) |
| Zoom | 1-16x (up to 4x lossless zoom) |
| ISO range | Video: 100-6400 Photos: 100-3200 |
| Maximum photo size | 8000x6000（4:3） 7680x4320（16:9） 4000*3000 (4:3) 3840*2160 (16:9) |
| Photo mode | Single shot Burst shooting: 3/5 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias Time Lapse: JPG: 2s/5s/7s/10s/20s/30s/60s DNG:5s/7s/10s/20s/30s/60s HyperLight: support (under 4K JPEG format) Long exposure:Max. 8s HDR imaging: support (under 4K JPEG format) |
| Image Format | JPG (default); DNG |
| Video format | MP4 / MOV format (MPEG-4 AVC/H.264, HEVC/H.265) |
| Video resolution | 8K 7680*4320 p25/p24 6K 5760*3240 p30/p25/p24 4K 3840*2160 p60/p50/p48/p30/p25/p24 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24 |
| Max bitrate | 120Mbps |
| Operating frequency | non-Japan：2.400 GHz - 2.4835 GHz；5.725 - 5.850 GHz Japan：2.400 GHz - 2.4835 GHz；5.650 - 5.755 GHz |
| Transmission power | 2.4G FCC/ ISED：≤27dBm SRRC/CE/MIC/RCM：≤20dBm 5.8G (non-Japan) ; 5.7G (Japan) FCC/ISED/SRRC/MIC：≤27dBm CE/ RCM：≤14dBm |
| Max Transmission Distance (unobstructed, free of interference) | FCC：9 km CE：5 km |
| Real-time image transmission quality | 720p@30fps / 1080p@30fps |
| Maximum bit rate of real-time image transmission | 40Mbps |
| Display screen | 3.26'' OLED 854（W） * 480（H）Pixel Directly preview the video without connecting a mobile phone |
| Remote controller battery | 5000mAh |
| Run time | 3 hours |
| Charging time | 2 hours fast charging |
| Working current/voltage | 1.7A@3.7V |
| Capacity | 7100 mAh |
| Voltage | 11.55 V |
| Battery type | LiPo 3S |
| Energy | 82 Wh |
| Weight | 365 g |
| Charging temperature range | 5℃ to 45℃ |
| Storage temperature and humidity | -10~30℃，65±20%RH |
| Recommended storage temperature | 22-28℃ |
| Max charging power | 93W |
| Charging time | 90 minutes |
| Input | 100-240 V, 50/60 Hz, 1.5A |
| Output | 13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A |
| Voltage | 13.2±0.1V |
| Rated power | 66W |
| Voltage | 13.2 V |
| Charging temperature range | 5℃ to 45℃ |
| Internal storage | 8GB |
| SD storage | Standard: 32 GB, max. support 256GB (UHS-3 rating required) |

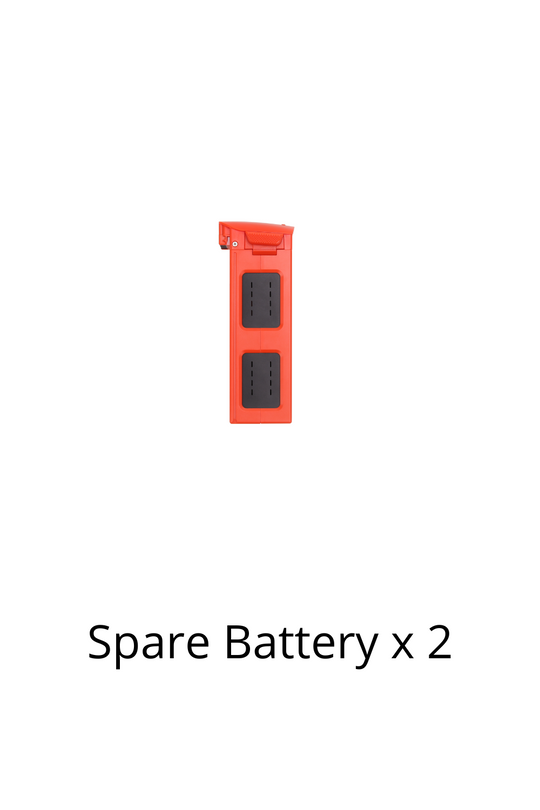

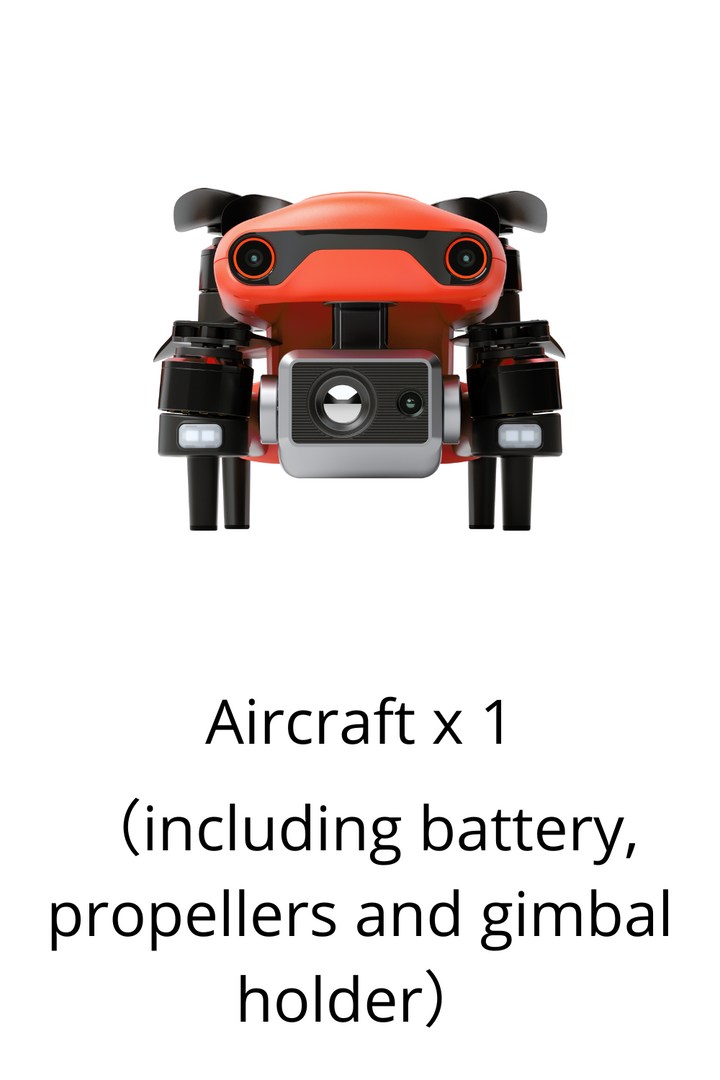

Packing List
FAQ
Yes, and the aircraft comes built-in with 8GB internal memory.
There is a Micro USB port and a Type-A port at the bottom of the remote controller which is used for connecting external devices and charging.
There are two customizable buttons on the back of the remote controller, and 4 functions can be customized through the APP.
Under the FCC standard, the maximum image transmission distance is 9km; under the CE standard, the maximum image transmission distance is 5 km.
Support. And provide a temperature analysis tool IR PC TOOL.
1. The influence of the atmosphere: the higher the temperature and humidity of the atmosphere, the greater the temperature measurement error.
2. The distance between the camera and the measured object: the farther the distance, the greater the temperature measurement error.
3. The emissivity and background temperature of the object: When the surface emissivity of the measured object is low and the background temperature is high, it will cause a large temperature measurement error.
Use the battery in a low temperature environment, the battery life will be reduced, please arrange the flight time reasonably. For the best performance of the battery, it is recommended to keep the battery temperature above 15 °C before flying.
It can be turned on or off manually, or it can be automatically turned on or off according to environmental conditions.
You can download the firmware package manually through the official website, or update the firmware through the Autel Explorer application.
